The 60-Hz Ac Source of a Series Circuit Has a Voltage

question 37

Multiple Choice

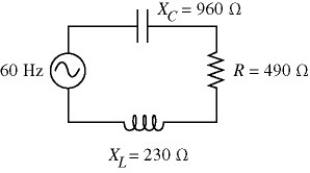

The 60-Hz ac source of a series circuit has a voltage amplitude of 120 V.The resistance,capacitive reactance,and inductive reactance are as shown in the figure.What is the rms current in the circuit?

• A)0.097 A
• B)0.11 A
• C)0.12 A
• D)0.14 A
• E)0.17 A

---
