Thirteen Resistors Are Connected Across Points a and B as Shown

question 17

Multiple Choice

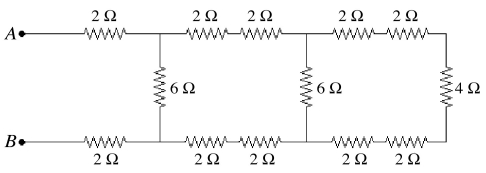

Thirteen resistors are connected across points A and B as shown in the figure.If all the resistors are accurate to 2 significant figures,what is the equivalent resistance between points A and B?

• A)4.0 Ω
• B)6.0 Ω
• C)8.0 Ω
• D)10 Ω
• E)12 Ω

---
