For the Circuit Shown in the Figure,determine the Current in

question 5

Short Answer

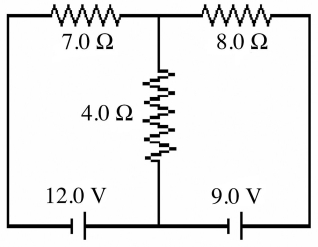

For the circuit shown in the figure,determine the current in
(a)the 7.0-Ω resistor.
(b)the 8.0-Ω resistor.
(c)the 4.0-Ω resistor.

---
