A Multiloop Circuit Is Shown in the Figure

question 24

Multiple Choice

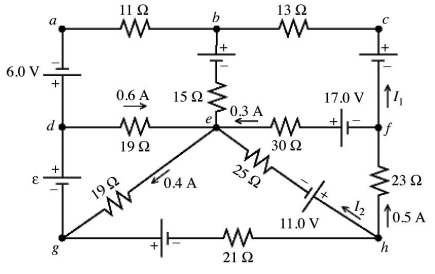

A multiloop circuit is shown in the figure.Some circuit quantities are not labeled.It is not necessary to solve the entire circuit.The emf ε is closest to

• A)+3 V.
• B)+19 V.
• C)-3 V.
• D)-10 V.
• E)-1 V.

---
