The Network Shown in the Figure Is Assembled with Uncharged

question 2

Multiple Choice

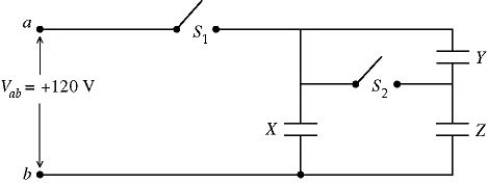

The network shown in the figure is assembled with uncharged capacitors X,Y,and Z,with ,and and open switches,S₁ and S₂.A potential difference V_ab = +120 V is applied between points a and b.After the network is assembled,switch S₁ is closed for a long time,but switch S₂ is kept open.Then switch S₁ is opened and switch S₂ is closed.What is the final voltage across capacitor X?

• A)94 V
• B)87 V
• C)79 V
• D)71 V
• E)63 V

---
