The Capacitive Network Shown in the Figure Is Assembled with Initially

question 14

Multiple Choice

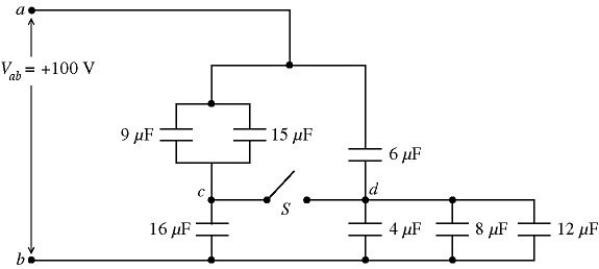

The capacitive network shown in the figure is assembled with initially uncharged capacitors.A potential difference,V_ab = +100V,is applied across the network.The switch S in the network is kept open.Assume that all the capacitances shown are accurate to two significant figures.What is the total energy stored in the seven capacitors?

• A)48 mJ
• B)72 mJ
• C)96 mJ
• D)120 mJ
• E)144 mJ

---
