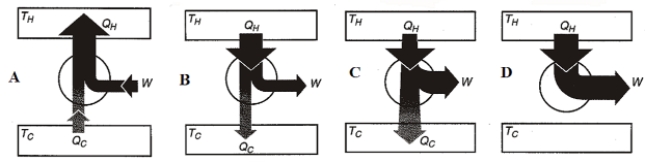

Shown below are 4 figures that represent the heat flow in a heat engine. The thickness of the arrows represents the amount of heat flow. TH is the high-temperature reservoir, TC is the low-temperature reservoir, QH is heat to/from TH, QC is heat to/from TC, and W is work. Which figure best represents a real heat engine?
