A Sinusoidal Potential Difference V_in = V_msin $\omega$ T)is Applied to the P-N Junction as Shown

question 26

Multiple Choice

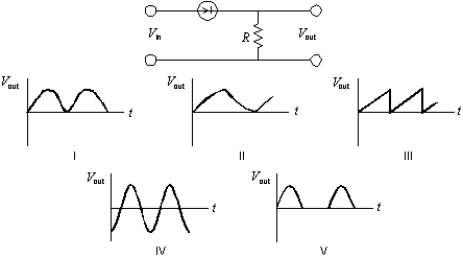

A sinusoidal potential difference V_in = V_msin( $\omega$ t) is applied to the p-n junction as shown.Which graph correctly shows V_out as a function of time?

• A)I
• B)II
• C)III
• D)IV

---
