The Table Below Provides Information About Tasks to Be Completed

question 83

Essay

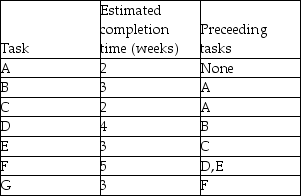

The table below provides information about tasks to be completed on a project,the precedence relationship between tasks and the expected times required to complete each task.Using this information,represent the project tasks on a Activity-on-Node (AON)network diagram,identify all the paths and the critical path,the critical tasks,the ES,EF,LS and LF times for each task and the time estimate for completing the project.

---
