In the Circuit Shown in the Figure, Four Identical Resistors

question 53

Multiple Choice

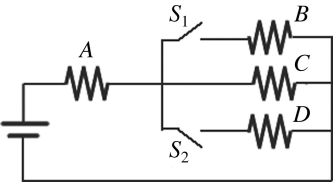

In the circuit shown in the figure, four identical resistors labeled A to D are connected to a battery as shown. S₁ and S₂ are switches. Which of the following actions would result in the GREATEST amount of current through resistor A?

• A) closing both switches
• B) closing S₁ only
• C) closing S₂ only
• D) leaving both switches open as shown.

---
