A Multiloop Circuit Is Shown in the Figure

question 41

Multiple Choice

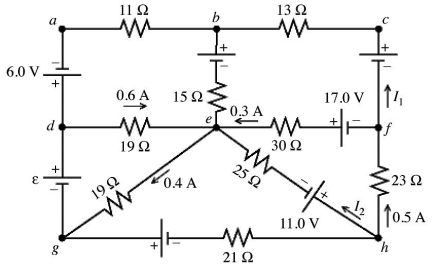

A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. It is not necessary to solve the entire circuit. The emf ε is closest to

• A) +3 V.
• B) +19 V.
• C) -3 V.
• D) -10 V.
• E) -1 V.

---
