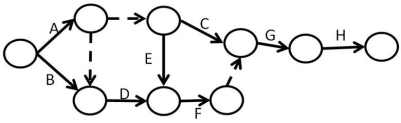

Mick has a project consisting of eight activities (listed in the table with durations and precedence requirements) to complete. He assigned his intern Guinness to sketch a network diagram in AOA and Guinness produced the sketch shown below. Discuss any issues with the apprentice's diagram.
