A Conducting Rod Whose Length Is ℓ = 25 Cm

question 15

Multiple Choice

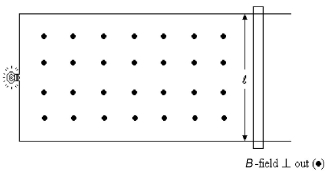

A conducting rod whose length is ℓ = 25 cm is placed on a U-shaped metal wire that is connected to a lightbulb having a resistance of 8.0 Ω as shown in the figure. The wire and the rod are in the plane of the page. A constant uniform magnetic field of strength 0.40 T is applied perpendicular to and out of the paper. An external applied force moves the rod to the left with a constant speed of 12 m/s. What are the magnitude and direction of the induced current in the circuit?

• A)150 mA clockwise
• B)150 mA counterclockwise
• C)34 mA counterclockwise
• D)34 mA clockwise
• E)100 mA clockwise

---
