A Number of Resistors Are Connected Across Points a and B

question 69

Multiple Choice

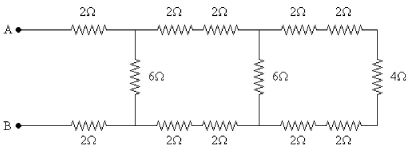

A number of resistors are connected across points A and B as shown in the figure. What is the equivalent resistance between points A and B?

• A)4 Ω
• B)6 Ω
• C)8 Ω
• D)10 Ω
• E)12 Ω

---
