Figure 7 -Refer to Figure 7. Assume Output Is Taken Between Vout1

question 37

Multiple Choice

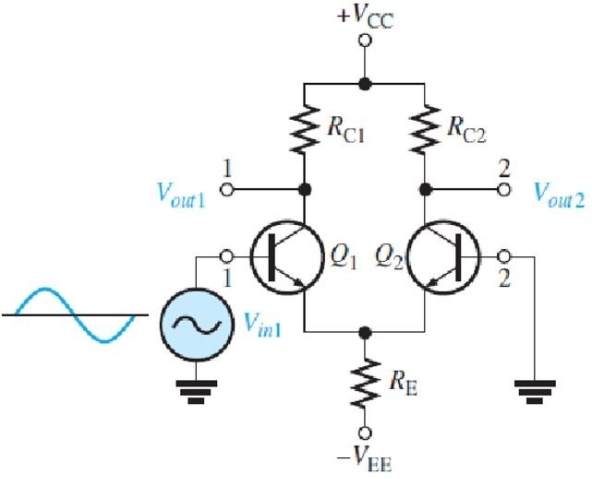

Figure 7
-Refer to Figure 7. Assume output is taken between Vout1 and Vout2. This condition is a

• A)double ended input with a differential output
• B)differential input with a differential output
• C)single ended input with a differential output
• D)single ended input with a single ended output

---
