Figure 3 Assume Ideal Components

question 4

Multiple Choice

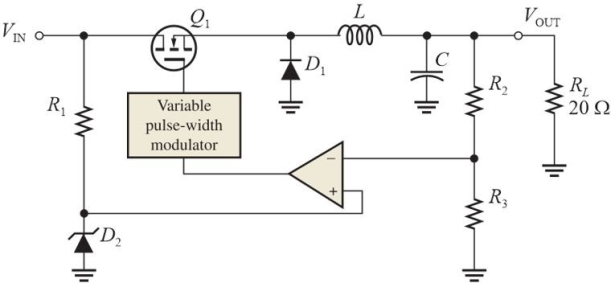

Figure 3 Assume ideal components.
-Refer to Figure 3. Assume VIN can vary between +15 V and +18 V. To obtain an output of +12 V, the duty cycle must vary between

• A)80% and 90%
• B)33% and 67%
• C)67% and 80%
• D)20% and 33%

---
