Figure 4 Both Op- Amps Are Compensated and Have AOL

question 20

Multiple Choice

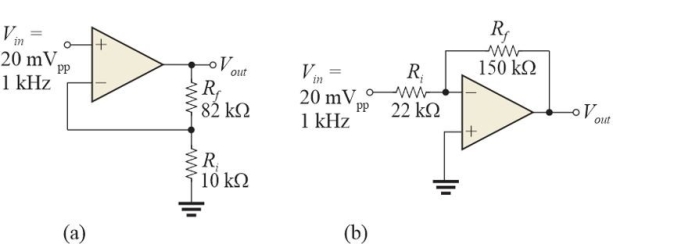

Figure 4 Both op- amps are compensated and have A<sub>OL </sub>= 100 dB and f<sub>T </sub>= 2 MHz. -Refer to Figure 4(a) . The open- loop critical frequency, fc(ol) , is A) 20 Hz B) 2.0 Hz C) 100 Hz D) 10 Hz Figure 4 Both op- amps are compensated and have AOL = 100 dB and fT = 2 MHz.
-Refer to Figure 4(a) . The open- loop critical frequency, fc(ol) , is
