In the Diagram Above, the Voltage Difference Between a and B

question 64

Multiple Choice

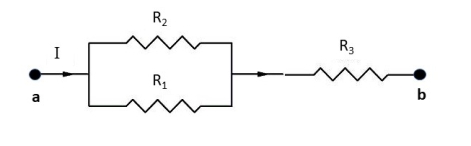

In the diagram above, the voltage difference between a and b is 6 V. If R₁ = 25 Ω, R₃ = 45 Ω, and I = 0.095 A, then find the current flowing through R₂.

• A) 0.026 A
• B) 0.015 A
• C) 0.037 A
• D) 0.080 A
• E) 0.070 A

---
