One of the Graphs Below Shows the Rate of Flow $p(R(15))$

question 14

Multiple Choice

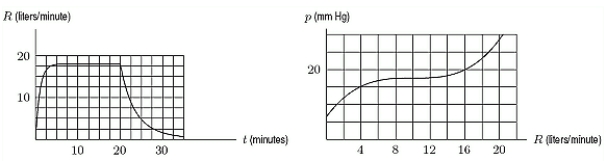

One of the graphs below shows the rate of flow, R, of blood from the heart in a man who bicycles for twenty minutes, starting at t = 0 minutes.The other graph shows the pressure, p, in the artery leading to a man's lungs as a function of the rate of flow of blood from the heart.Estimate $p(R(15) )$
.

• A)26.5
• B)23
• C)17.5
• D)13

---
