-The Amplifier in Figure Has the Following Values: Zout

question 15

Multiple Choice

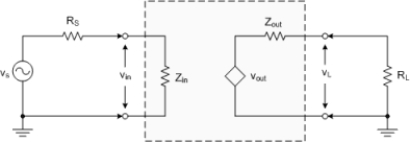

-The amplifier in Figure has the following values: Zout = 1.2 kΩ, RL = 3.3 kΩ, vout = 18.6 V. What is the value of the load voltage?

• A) 13.6 V
• B) 6.78 V
• C) 51.3 V
• D) 4.07 V

---
