-The Circuit in Figure Has the Following Values: R1

question 5

Multiple Choice

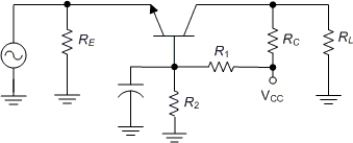

-The circuit in Figure has the following values: R1 = 60 kΩ, R2 = 20 kΩ, RE = 1.5 kΩ,RC = 3.3 kΩ, and RL = 10 kΩ, and VCC = 9 V.
What is the circuit value of Av?

• A) About 1
• B) 0.984
• C) 102
• D) 132

---
