-Given the Circuit in Figure, Calculate VTH and RTH

question 15

Multiple Choice

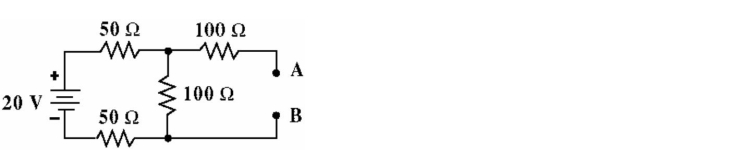

-Given the circuit in Figure, Calculate VTH and RTH.

• A) VTH = 10 V, RTH = 50 Ω
• B) VTH = 10 V, RTH = 150 Ω
• C) VTH = 6.7 V, RTH = 150 Ω
• D) VTH = 5.0 V, RTH = 50 Ω

---
