Figure 5-7 -Given the Circuit in Figure 5-7, the Voltage Drop Across

question 38

Multiple Choice

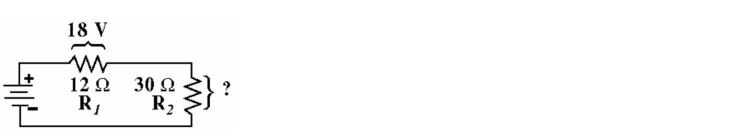

Figure 5-7
-Given the circuit in Figure 5-7, the voltage drop across R1 is 18 V. What is the voltage drop across R2?

• A) 36 V
• B) 20 V
• C) 45 V
• D) 54 V

---
