Figure 20-3 -See Figure 20-3. If the Square Wave Pulse Width Is

question 17

Multiple Choice

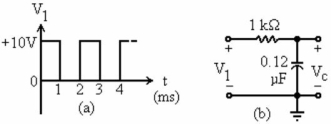

Figure 20-3
-See Figure 20-3. If the square wave pulse width is decreased to 1.0 µs, how will the VC waveform change?

• A) The average value will drop to zero
• B) The peak voltage reached will increase.
• C) The corners will be less rounded
• D) The waveform will become flattened.

---
