-The Phase Shift Between the Source Voltage V_S and Total

question 14

Multiple Choice

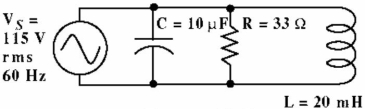

-The phase shift between the source voltage V_S and total circuit current in Figure is:

• A) -46.45°
• B) 23.4°
• C) -23.4°
• D) -76.8°

---
