Figure 12-4 -Given the Circuit in Figure 12-4, What Is the Approximate

question 6

Multiple Choice

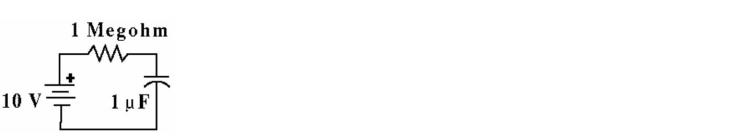

Figure 12-4
-Given the circuit in Figure 12-4, what is the approximate voltage across the capacitor at the end of 1 second after the 10V source is connected?

• A) 10 V
• B) 6.3 V
• C) 63 V
• D) 0.707 V

---
