-Refer to the Figure Above

question 28

Multiple Choice

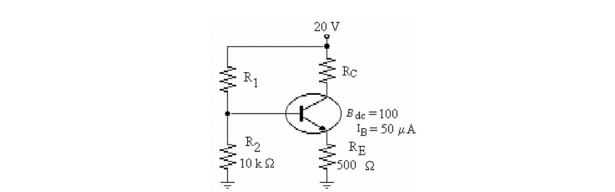

-Refer to the figure above. If the transistor were replaced with a transistor whose fidc = 200, the change that might occur is A) VC would change a small amount. B) VC would increase to near 20 V. C) IB would increase significantly. D) VC would decrease to near 0 V.
-Refer to the figure above. If the transistor were replaced with a transistor whose fidc = 200, the change that might occur is
