-Refer to the Figure Above

question 11

Multiple Choice

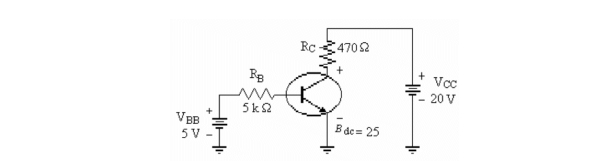

-Refer to the figure above. If the value of VBB were increased to 10 V, the transistor would be operating in

• A)the active region.
• B)cutoff.
• C)saturation.
• D)Cannot be determined.

---
