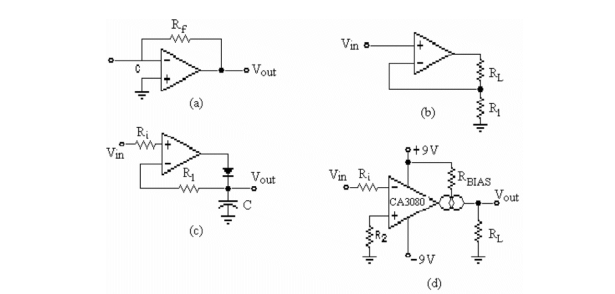

-Refer to B)in the Figure Above

question 12

Multiple Choice

-Refer to b) in the figure above. If RL = 20 k, R1 = 1.2 k, and Vin = 2.5 V, the load current IL would be

• A)2.083 A.
• B)208.3 µA.
• C)2.083 mA.
• D)20.83 mA.

---
