-Refer to B)in the Figure Above

question 13

Multiple Choice

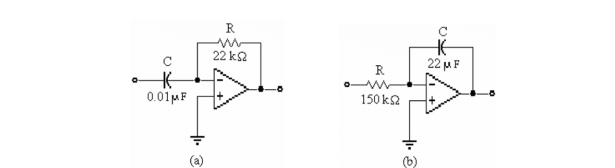

-Refer to b) in the figure above. A square wave input is applied to this circuit. The output voltage is most likely to be

• A)a square wave.
• B)a sine wave.
• C)a triangle wave.
• D)no output.

---
