FIGURE 26-17 -Three Resistors of Values 2 Ω, 6 Ω and 12

question 68

Multiple Choice

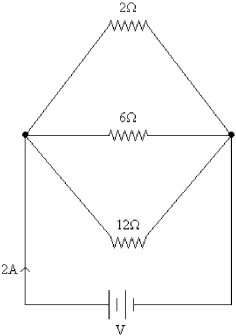

FIGURE 26-17
-Three resistors of values 2 Ω, 6 Ω and 12 Ω are connected across a DC voltage source as shown in Fig. 26-17. If the total current through the circuit is 2.0 A, what is the applied voltage?

• A)6.0 V
• B)3.0 V
• C)2.0 V
• D)2.7 V
• E)1.5 V

---
