Given the Following Drawing, a Reference Chart Showing a Range

question 83

Essay

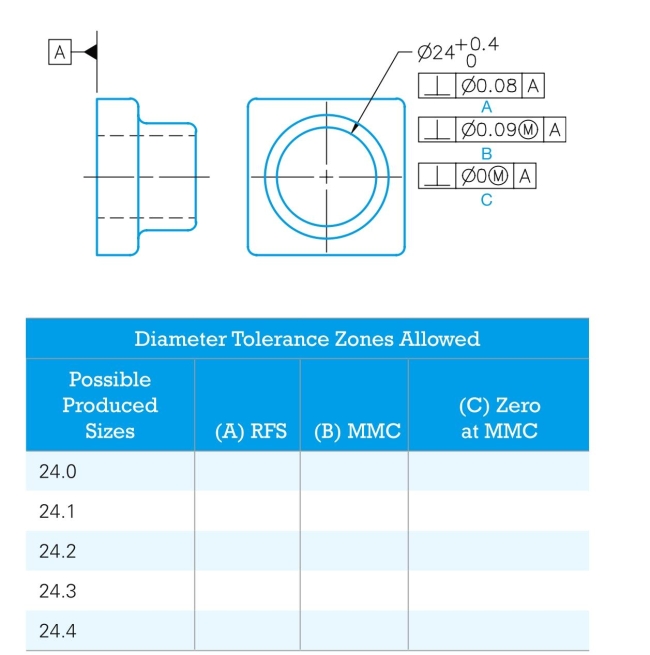

Given the following drawing, a reference chart showing a range of possible produced sizes, and three optional feature control frames that can be applied to the diameter dimension, provide the geometric tolerance at each possible produced size for each feature control frame application.

---
