Consider the Datapath Below

question 17

Essay

Consider the datapath below. This machine does not support code with branch delay slots. (It predicts not-taken with a 1-cycle penalty on taken branches.) For each control signal listed in the table below, determine its value at cycles 3 through 9, inclusive. Also, show the instruction occupying each stage of the pipeline in all cycles. (Assume the IF/ID write-enable line is set to the inverse of the Stall signal.)
The initial state of the machine is:
PC = 0
All pipeline registers contain 0s
All registers in the register file contain 0s. The data memory contains 0s in all locations The instruction memory contains:
00: addiu $3, $zero, 4 04: lw $4, 100($3)
08: addu $2, $4, $3
0C: beq $4, $zero, 0x14 10: addiu $3, $3, 1
14: addu $2, $2, $3
all other locations contain 0
Use data forwarding whenever possible. All mux inputs are numbered vertically from "top" to "bottom" starting at 0 as you look at the datapath in the proper landscape orientation. Also, the values for ALUOp are:

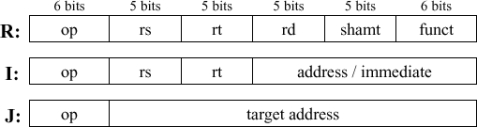

Instruction formats:

---

Definitions:
