A Uniform 100-Lb Beam Is Held in a Vertical Position

question 15

Multiple Choice

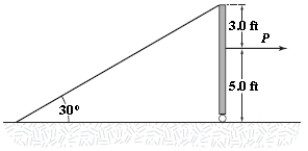

A uniform 100-lb beam is held in a vertical position by a pin at its lower end and a cable at its upper end. A horizontal force (magnitude P) acts as shown in the figure. If P = 75 lb, what is the tension in the cable?

• A) 54 lb
• B) 69 lb
• C) 47 lb
• D) 61 lb
• E) 75 lb

---
