Meters: a Galvanometer G Has an Internal Resistance R_g

question 26

Multiple Choice

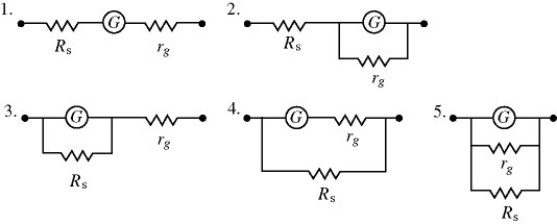

Meters: A galvanometer G has an internal resistance r_g. A VOLTMETER is constructed by incorporating the galvanometer and an additional resistance R_s. Which one of the figures below is the most appropriate circuit diagram for the voltmeter?

• A) 1
• B) 2
• C) 3
• D) 4
• E) 5

---
