Resistors in Combination: for the Circuit Shown in the Figure

question 42

Essay

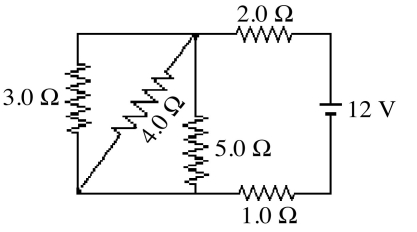

Resistors in combination: For the circuit shown in the figure, determine the current in
(a) the 1.0-Ω resistor.
(b) the 3.0-Ω resistor.
(c) the 4.0-Ω resistor.

---
