Kirchhoff's Rules: a Multiloop Circuit Is Shown in the Figure

question 52

Multiple Choice

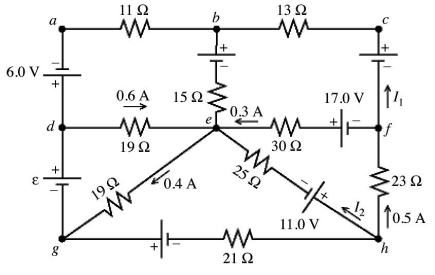

Kirchhoff's rules: A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. It is not necessary to solve the entire circuit. The current I₁ is closest to

• A) zero.
• B) +0.2 A.
• C) +0.4 A.
• D) -0.2 A.
• E) -0.4 A.

---
