Capacitors in Combination: the Capacitors in the Network Shown in the Figure

question 29

Multiple Choice

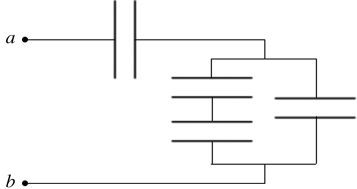

Capacitors in combination: The capacitors in the network shown in the figure all have a capacitance of 5.0 µF. What is the equivalent capacitance, C_ab, of this capacitor network?

• A) 20 µF
• B) 3.0 µF
• C) 10 µF
• D) 5.0 µF
• E) 1.0 µF

---
