Capacitors in Combination: the Network Shown in the Figure Is

question 49

Multiple Choice

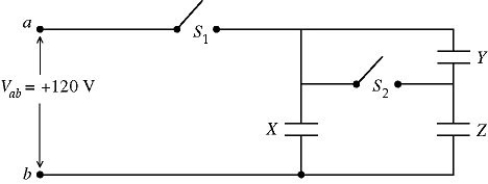

Capacitors in combination: The network shown in the figure is assembled with uncharged capacitors X, Y, and Z, with , and and open switches, S₁ and S₂. A potential difference V_ab = +120 V is applied between points a and b. After the network is assembled, switch S₁ is closed for a long time, but switch S₂ is kept open. Then switch S₁ is opened and switch S₂ is closed. What is the final voltage across capacitor X?

• A) 94 V
• B) 87 V
• C) 79 V
• D) 71 V
• E) 63 V
