Figure 07-1 -Refer to the Accompanying Figure. When Starting the DC Motor

question 10

Short Answer

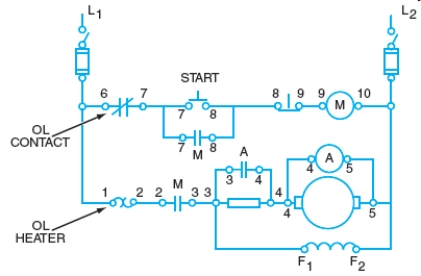

Figure 07-1

-Refer to the accompanying figure. When starting the DC motor, as the ____________________ builds across the armature, it acts like a resistor that drops a larger percentage of the applied voltage, thus providing a voltage drop for the A coil and the A contacts 3-4 close to bypass current around the starting resistor.

---
