A Cylindrical Tank Is Assembled by Welding Steel Sections Circumferentially $2.0 \mathrm { MPa }$

question 8

Multiple Choice

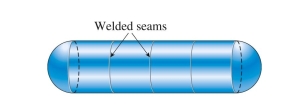

A cylindrical tank is assembled by welding steel sections circumferentially. Tank diameter is 1.5 m, thick- ness is 20 mm, and internal pressure is 2.0 MPa. The maximum shear stress in the heads is approximately: $2.0 \mathrm { MPa }$

• A) \(19 \mathrm { MPa }\)
• B) \(23 \mathrm { MPa }\)
• C) \(33 \mathrm { MPa }\)
• D) \(35 \mathrm { MPa }\)

---
