The Circuit Shown Below

question 6

Essay

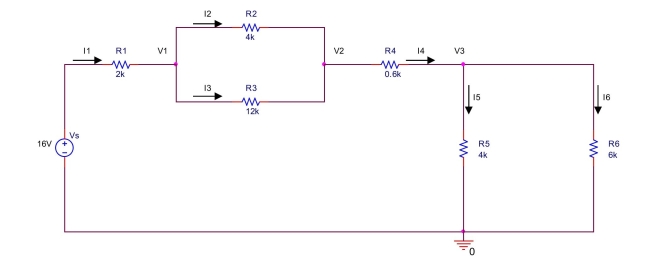

the circuit shown below,
(a) Find R_a = R₅ || R₆ and R_b = R₃ || R₄.
(b) Redraw the circuit consisting of V_s, R₁, R_b, R₄, and R_a. Find the equivalent resistance R_eq
seen from the voltage source.
(c) Find the current I1 through R₁, R_b, R₄, and R_a.
(d) Find the voltage across R₁, voltage across R_b, voltage across R₄, and voltage across R_a
(e) Find the voltage V₁, voltage V₂, and voltage V₃.
(f) Find the currents I₂, I₃, I₅ and I₆.
