Circuit Is Shown in Figure 1

question 3

Essay

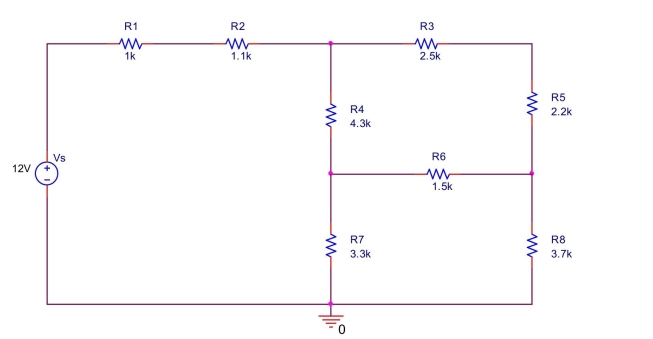

circuit is shown in Figure 1. In this figure,
(a) Label all the nodes (1, 2, 3, ...) in the circuit excluding the ground node which is already
labeled as 0.
(b) How many nodes are there?
(c) How many simple nodes are there?
(d) How many essential nodes are there?
(e) How many branches are there?
(f) How many meshes are there? List all meshes.
(g) How many loops (including meshes) are there?
(h) List all loops that are not meshes. Figure 1

---
