In the Circuit Shown Below, Let Draw the Circuit in the S-Domain and Find the Norton

question 22

Essay

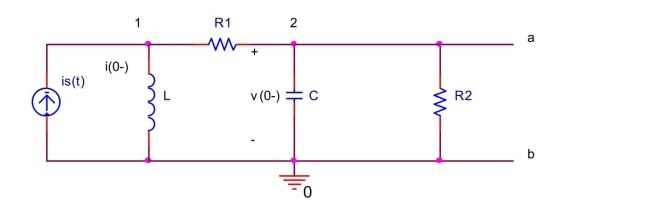

In the circuit shown below, let $\mathrm { R } _ { 1 } = 2 \Omega , \mathrm { R } _ { 2 } = 3 \Omega , \mathrm { C } = 1 \mathrm {~F} , \mathrm {~L} = 0.2 \mathrm { H } , \mathrm { v } \left( 0 ^ { - } \right) = 1 \mathrm {~V} , \mathrm { i } \left( 0 ^ { - } \right) = 2 \mathrm {~A} , \mathrm { i } _ { \mathrm { s } } ( \mathrm { t } ) = 3 \mathrm { u } ( \mathrm { t } )$
Draw the circuit in the s-domain and find the Norton equivalent current $\mathrm { I } _ { \mathrm { n } } ( \mathrm { s } )$ and the Norton equivalent impedance $Z _ { n } ( s )$ . $In the circuit shown below, let \mathrm { R } _ { 1 } = 2 \Omega , \mathrm { R } _ { 2 } = 3 \Omega , \mathrm { C } = 1 \mathrm {~F} , \mathrm {~L} = 0.2 \mathrm { H } , \mathrm { v } \left( 0 ^ { - } \right) = 1 \mathrm {~V} , \mathrm { i } \left( 0 ^ { - } \right) = 2 \mathrm {~A} , \mathrm { i } _ { \mathrm { s } } ( \mathrm { t } ) = 3 \mathrm { u } ( \mathrm { t } ) Draw the circuit in the s-domain and find the Norton equivalent current \mathrm { I } _ { \mathrm { n } } ( \mathrm { s } ) and the Norton equivalent impedance Z _ { n } ( s ) .$
