Figure 38-11 the Circuit Shown in the Above Figure Contains Two

question 11

Essay

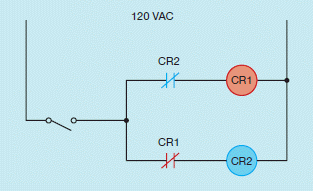

Figure 38-11


The circuit shown in the above figure contains two control relay coils. A normally closed contact, controlled by the opposite relay, is connected in series with each coil. When the switch is closed, which relay will turn on and which will be locked out of the circuit?

---
