Read the Measurement Shown on Each Vernier Caliper

question 13

Short Answer

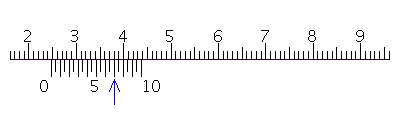

Read the measurement shown on each vernier caliper. __________ mm

---

Definitions:

Cutting Plane

An imaginary plane where an object is assumed to be cut through to produce sectional views for technical drawings.

Theoretical

Pertains to concepts or ideas existing in theory and not necessarily by practice or actual implementation.

Countersink

A method to create a conical hole matching the angled shape of a countersink screw, allowing the head to sit flush with or below the surface of the material.

Depth Symbol

A notation used in technical drawings to specify the depth of a feature, such as a hole or recess.
