Use Data Sheet 5 and 7 Mixed Number Example: 2-1/3

question 7

Short Answer

Use Data Sheet 5 and 7 Mixed number Example: 2-1/3
Put a dash between the whole number and the fraction.Simple Fraction Example: 2/3

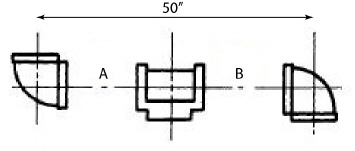

1/2 copper pipe is divided into two equal segments.c-c = 50 inches long
1/2 copper, 90 ell
1/2 copper, tee
Find the end-to-end measure of pipe A.
