An Organization Has Recently Grown Through Acquisitions

question 802

Multiple Choice

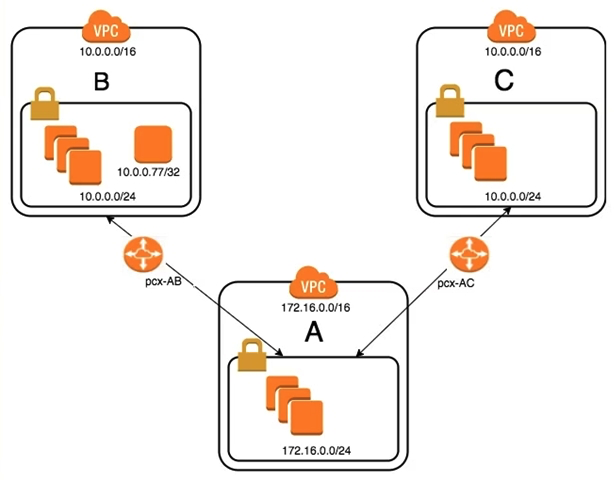

An organization has recently grown through acquisitions. Two of the purchased companies use the same IP CIDR range. There is a new short-term requirement to allow AnyCompany A (VPC-A) to communicate with a server that has the IP address 10.0.0.77 in AnyCompany B (VPC-B) . AnyCompany A must also communicate with all resources in AnyCompany C (VPC-C) . The Network team has created the VPC peer links, but it is having issues with communications between VPC-A and VPC-B. After an investigation, the team believes that the routing tables in the VPCs are incorrect. What configuration will allow AnyCompany A to communicate with AnyCompany C in addition to the database in AnyCompany B?

• A) On VPC-A, create a static route for the VPC-B CIDR range (10.0.0.0/24) across VPC peer pcx-AB. Create a static route of 10.0.0.0/16 across VPC peer pcx-AC. On VPC-B, create a static route for VPC-A CIDR (172.16.0.0/24) on peer pcx-AB. On VPC-C, create a static route for VPC-A CIDR (172.16.0.0/24) across peer pcx-AC.
• B) On VPC-A, enable dynamic route propagation on pcx-AB and pcx-AC. On VPC-B, enable dynamic route propagation and use security groups to allow only the IP address 10.0.0.77/32 on VPC peer pcx-AB. On VPC-C, enable dynamic route propagation with VPC-A on peer pcx-AC.
• C) On VPC-A, create network access control lists that block the IP address 10.0.0.77/32 on VPC peer pcx-AC. On VPC-A, create a static route for VPC-B CIDR (10.0.0.0/24) on pcx-AB and a static route for VPC-C CIDR (10.0.0.0/24) on pcx-AC.
• D) On VPC-A, create a static route for the VPC-B (10.0.0.77/32) database across VPC peer pcx-AB. Create a static route for the VPC-C CIDR on VPC peer pcx-AC.

---
