The HW Network Consists of Network a and B That

question 271

Multiple Choice

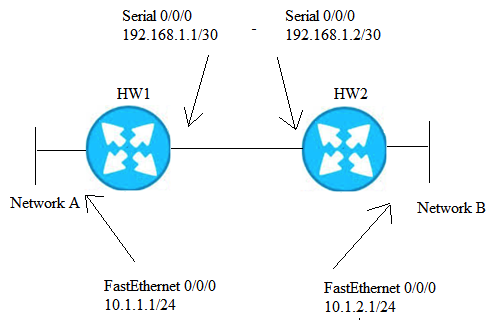

The HW network consists of Network A and B that are connected via Router HW1 and Router HW2. The HW network is shown in the following exhibit. To set up an IPSec VPN between routers HW1 and HW2, which of the following crypto access-lists must be configured on Router HW1 in order to send LAN to LAN traffic across the encrypted VPN tunnel?

• A) rule permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
• B) rule permit ip source 10.1.1.0 0.0.0.255 destination 192.168.1.2 0
• C) rule permit ip source 198.168.1.1 0 destination 192.168.1.2 0
• D) rule permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
• E) rule permit ip source 192.168.1.1 0 destination 10.1.2.0 0.0.0.255

---
