Both IS-IS and OSPF Run on a Network as Shown

question 290

Multiple Choice

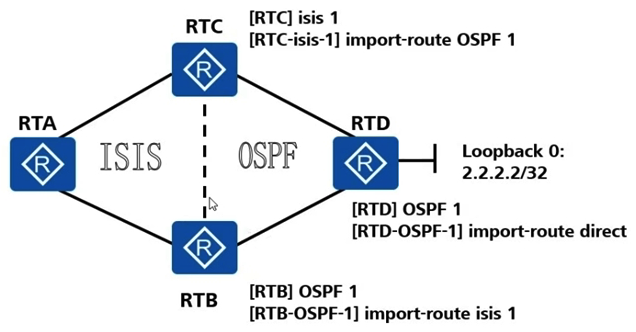

Both IS-IS and OSPF run on a network as shown in the following figure. Route import is configured on RTB and RTC respectively. All the routers are connected through GE interfaces. Routes to the network segment 2.2.2.2/32 is imported to the OSPF process using the import-route direct command on RTD. The default settings are retained for all the other configurations. Which of the following statements regarding this network is false?

• A) The following configuration can be performed on RTC to filter out only routes to the network segment 2.2.2.2/32 when RTC imports routes: [RTC] ip ip-prefix 10 index 1 deny 2.0.0.0 8 less-equal 32 [RTC-isis-1]filter-policy ip-prefix 10 import
• B) On RTB, adjust the IS-IS preference to 160 to avoid generation of sub-optimal routes on the network
• C) The following configuration can be performed on RTC to filter out routes from RTD to the network segment 2.2.2.2/32 when RTC imports OSPF routes: [RTC-acl-basic-2001]rule 5 deny source 2.0.0.0 0.255.255.255 [RTC-acl-basic-2001]rule 10 permit [RTC-isis-1]filter-policy 2001 import
• D) RTB learns that RTA is the next hop of the route to the network segment 2.2.2.2/32

---
